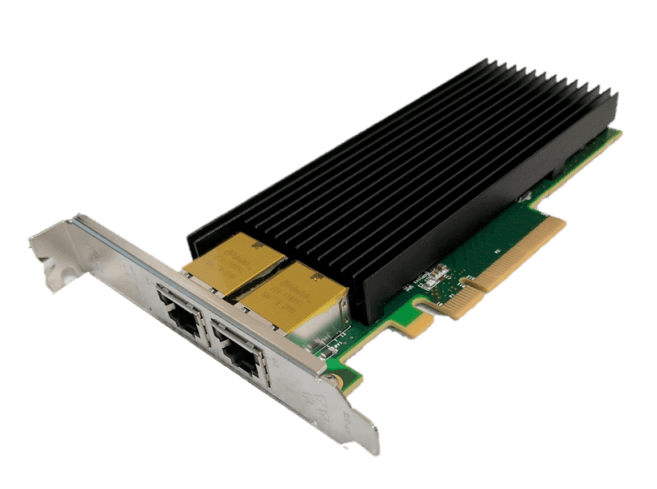

P2E10G-2-T 10GbE Two Port 10GBase-T
Call for Pricing
Dual Port Intel X540 based PCI Express 10Gb Ethernet Network Adapter - 10GBASE-T
Connect Your Windows, Linux or OS X system to 10 Gigabit Ethernet Capable Switch
Supports OS X 10.7 or Later.
Contact Us
Product Description
| Features | Benefits | ||
| Intel 10GbE Converged Network Adapter X540 | Industry's first integrated MAC PHY, reducing cost and power. | ||
| Low-profile |
Enables higher bandwidth and throughput from standard and low-profile PCe slots and servers. |
||
| Support for most Network Operating Systems (NOS) |
Enables widespread deployment. |
||
| RoHS compliant, lead-free technology | Compliant with the European Union directive (July 2005) to reduce hazardous materials. |
||
| MSI-X support |
Minimized the overhead of interrupts. Allows load balancing of interrupt handling between different cores/CPUs. | ||
| Low Latency |
Based on the sensitivity of the incoming data, the adapter can bypass the automatic moderation of time intervals between the interrupts. |
||
| Header Splits and Replication in Recieve |
Helps the driver focus on the relevant part of the packet without the need to parse it. |
||
| Tx/Rx IP, 5CTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities |
Low processor usage. Checksum and segmentation capability extended to new standard packet type. |
||
| Tx TCP segmentation offload (IPv4, IPv6) |
Increased throughput and lower processor usage. Compatible with large send off load feature (in Microsoft Windows Server operating systems). |
||
| Compatible with x8 and x16 standard PCI express slots |
Enables each PCI Express slot to operate without interfering or competing with other ports. |
||
| RJ45 connections over CAT-6a cabling |
Ensures compatibility with cable lengths up to 100 meters. |
||
| VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags |
Ability to create multiple VLAN segments. |
Technical Specifications
| System Requirements | Mac Pro with PCI Express slots and Intel-based Xserve systems |
| Connectors | RJ-45 Copper |
| Cabling | Cat6 or better |
| Ships with full-height bracket installed, low-profile bracket added in package. | Yes |
| Advanced packet filtering (per port) | • 16 exact-matched packets (unicast or multicast). • 4096-bit hash filter for multicast frames. • Promiscuous (unicast and multicast) transfer mode support. • Optional filtering of invalid frame. |
| Adapter Fault Tolerance (AFT) | Yes |
| Switch Fault Tolerance (SFT) | Yes |
| Adaptive Load Balancing (ALB) | Yes |
| Virtual Machine Load Balancing (VMLB) | Yes |
| Teaming support | Yes |
| IEEE 802.3ad4 (link aggregation control protocol) | Yes |
| PCIe Hot Plug/Active Peripheral Component Interconnect (PCI) | Yes |
| IEEE 802.1Q VLANs | Yes |
| IEEE 802.3 2005 flow control support | Yes |
| Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol (TCP), User Datagram Protocol (UDP),Internet Protocol (IP) | Yes |
| IEEE 802.1p | Yes |
| TCP segmentation/large send offload | Yes |
| MSI-X supports Multiple Independent Queues | Yes |
| Data rate supported per port | 100 Mbps, 1Gbps, 10Gbps |
| Bus type | PCI Express 2.1 (5.0 GT/s) |
| Bus width | x8 lane PCI Express, operable in x8 and x16 slots |
| Bus speed (x8, encoded rate) | 20 Gbps uni-directional; 40 Gbps bi-directional |
| Interrupt levels | INTA, MSI, MSI-X |
| Hardware certifications | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Typical power consumption |
|
| Operating temperature | 0°C – 45°C (32°F – 113°F) |
| Storage temperature | -40°C – 65°C (-40°F – 149°F) |
| Storage humidity | 90% non-condensing relative humidity at 35° C |
| LED Indicators | LINK (solid) and ACTIVITY (blinking) |
| Physical Dimensions | |
| Board Size | Low profile add-in card: 152.4 mm X 68.91mm (6.0”X 2.713”) |
| Includes full height bracket | |
