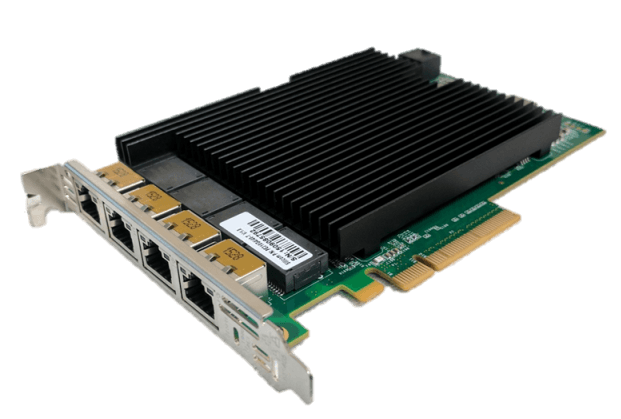

P3E10G-4-T 10GbE Four Port 10GBase-T
Call for Pricing
Quad Port Intel X540 based PCI Express 10Gb Ethernet Network Adapter - 10GBASE-T
Connect Your Windows, Linux or OS X System to 10 Gigabit Ethernet Capable Switch
Supports OS X 10.7 or Later
Contact Us
Product Description
| Features | Benefits | ||
| 10GbE Converged Network Adapter Intel X540 based | Industry's first integrated MAC PHY, reducing cost and power. | ||
| Support for most Network Operating Systems (NOS) | Enables widespread deployment. | ||
| RoHS compliant, lead-free technology | Compliant with the European Union directive (July 2005) to reduce hazardous materials. | ||
| MSI-X support | Minimized the overhead of interrupts. Allows load balancing of interrupt handling between different cores/CPUs. | ||
| Low Latency |
Based on the sensitivity of the incoming data, the adapter can bypass the automatic moderation of time intervals between the interrupts. | ||
| Header Splits and Replication in Receive | Helps the driver focus on the relevant part of the packet without the need to parse it. | ||
| Tx/Rx IP, 5CTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities |
Low processor usage. Checksum and segmentation capability extended to new standard packet type. | ||
| Tx TCP segmentation offload (IPv4, IPv6) | Increased throughput and lower processor usage. Compatible with large send off load feature (in Microsoft Windows Server operating systems). | ||
| Compatible with x8 and x16 standard PCI express slots |
Enables each PCI Express slot to operate without interfering or competing with other ports. | ||
| RJ45 connections over CAT-6a cabling | Ensures compatibility with cable lengths up to 100 meters. | ||
| VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags | Ability to create multiple VLAN segments. |
Technical Specifications
| System Requirements | Mac Pro with PCI Express slots and Intel-based Xserve systems |
| Connectors | RJ-45 Copper |
| Cabling | Cat6 or better |
| Ships with full-height bracket installed, low-profile bracket added in package. |
Yes |
| Advanced packet filtering (per port) | • 16 exact-matched packets (unicast or multicast). • 4096-bit hash filter for multicast frames. • Promiscuous (unicast and multicast) transfer mode support. • Optional filtering of invalid frame. |
| Adapter Fault Tolerance (AFT) | Yes |
| Switch Fault Tolerance (SFT) | Yes |
| Adaptive Load Balancing (ALB) | Yes |
| Virtual Machine Load Balancing (VMLB) | Yes |
| Teaming support | Yes |
| IEEE 802.3ad4 (link aggregation control protocol) | Yes |
| PCIe Hot Plug/Active Peripheral Component Interconnect (PCI) | Yes |
| IEEE 802.1Q VLANs | Yes |
| IEEE 802.3 2005 flow control support | Yes |
| Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol (TCP), User Datagram Protocol (UDP), Internet Protocol (IP) |
Yes |
| IEEE 802.1p | Yes |
| TCP segmentation/large send offload | Yes |
| MSI-X supports Multiple Independent Queues | Yes |
| Data rate supported per port | 100 Mbps, 1Gbps, 10Gbps |
| Bus type | PCI Express 3.0 (8GT/s) |
| Bus width | x8 lane PCI Express, operable in x8 and x16 slots |
| Bus speed (x8, encoded rate) | 20 Gbps uni-directional; 40 Gbps bi-directional |
| Interrupt levels | INTA, MSI, MSI-X |
| Hardware certifications | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Typical power consumption | |
| Operating temperature | 0°C – 45°C (32°F – 113°F) |
| Storage temperature | |
| Storage humidity | 90% non-condensing relative humidity at 35° C |
| LED Indicators | LINK (solid) and ACTIVITY (blinking) |
| Physical Dimensions | |
| Board Size | Standard height half-length add-in card 167.65mm X 111.15mm (6.6”X 4.376”) |
Small Tree Support & Warranty
Each Small Tree Storage system includes a One Year Hardware replacement warranty on the server and components. OS Software version upgrades and unlimited phone and email Tech Support is also included.
Multi-year Hardware/ Software Support options are available at time of initial system purchase or can be renewed annually. Please visit the Support and Warranty Section of our site for more information, and to connect with our support team.
